ID # 17393330

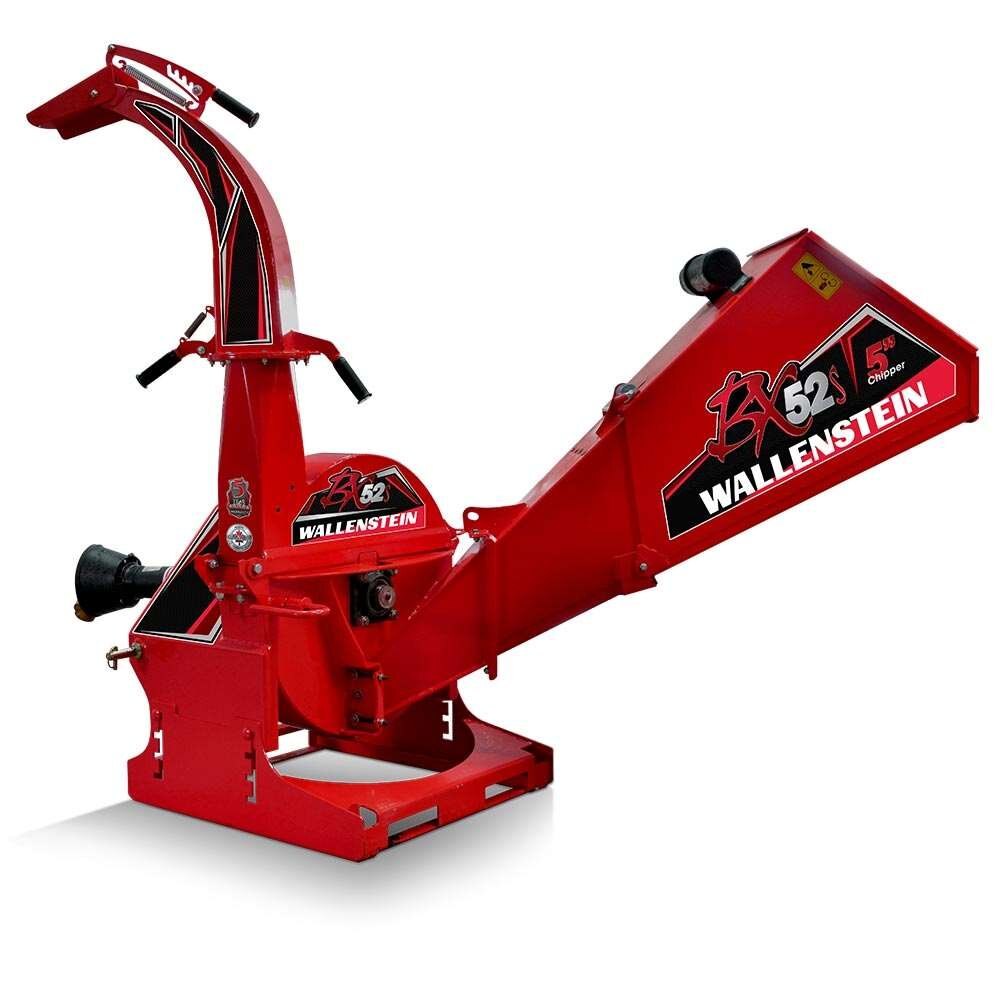

Wallenstein BX52S

Videos
Call for Price
Overview

Gravity Feed
Tractor

The self feeding chipper automatically pulls in limbs and branches up to 5” in diameter. Chipping action is powered directly from your tractor’s PTO. Easily fold up the hopper for compact transportation.

Specifications
Model
BX52S
Category Name
Agriculture
Year
2021
Sale Type
New
Manufacturer
Wallenstein
Engine Size
999 CC
Rated RPM
540 - 1000
Feed System
Gravity
Chipper Type
Disc
Drive System
PTO Direct Drive
Rotor Weight
125 lbs (57 kg)
Total Weight
505 lbs (229 kg)
Rotor Diameter
25" (64 cm)
Engine HP Range
12 - 30
Mounting System
Cat II, iMatch™ & Quick Hitch Compatible
Chipping Capacity
3.5" (9 cm)
Chipper Rotor Opening
5" x 10" (13 cm x 26 cm)
Chipper Hopper Opening
20" x 20" (51 cm x 51 cm)
Dimensions Open (LxWxH)
61" x 64" x 66" (155 cm x 163 cm x 168 cm)
Number Of Chipper Knives
4
Dimensions Folded (LxWxH)
43" x 42" x 66" (109 cm x 107 cm x 168 cm)
features

360° Adjustable Chute

Control the output of the chipper with the easily adjustable chute allowing the user to direct the flow of chips where they want.

Adjustable Ski Base https://www.wallensteinequipment.com/file.ashx?id=2236d022-56ea-4fb0-9b54-59407e09a0a2&h=230&w=230

Adjust the chipper height to match the PTO height on your tractor.

Angled Rotor https://www.wallensteinequipment.com/file.ashx?id=2236d022-56ea-4fb0-9b54-59407e09a0a2&h=230&w=230

Angling the log against the rotor requires less horsepower to chip, saving fuel.

Bearing Plate Protection https://www.wallensteinequipment.com/file.ashx?id=2236d022-56ea-4fb0-9b54-59407e09a0a2&h=230&w=230

Keeps wood chips from getting into the bearing and causing damage.

Cat I iMatch Quick Hitch Compatible https://www.wallensteinequipment.com/file.ashx?id=2236d022-56ea-4fb0-9b54-59407e09a0a2&h=230&w=230

Easily attach to your tractor without leaving your seat.

Choose Your Colour https://www.wallensteinequipment.com/file.ashx?id=2236d022-56ea-4fb0-9b54-59407e09a0a2&h=230&w=230

With Wallenstein you have a choice. Products are available in seven solid colors and Realtree EDGE™camouflage. $250 price premium for Realtree EDGE™ camouflage.

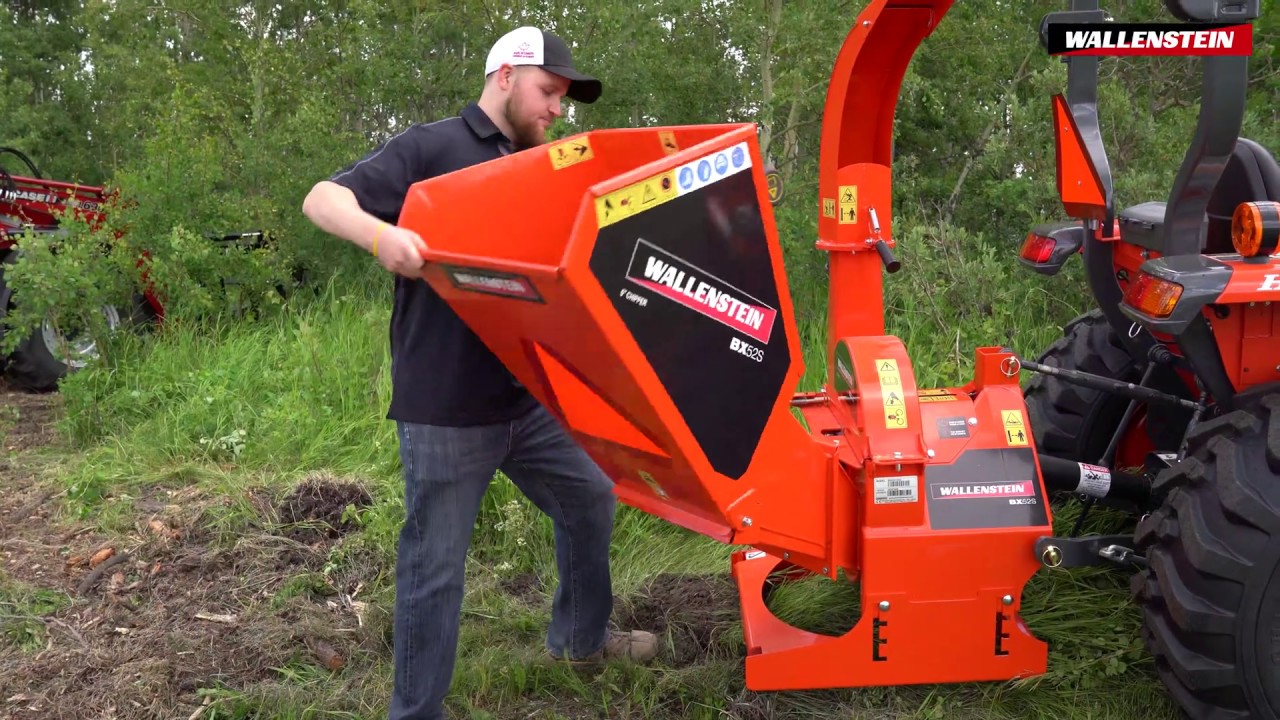

Fold Up Feed Hopper - No Tools https://www.wallensteinequipment.com/file.ashx?id=2236d022-56ea-4fb0-9b54-59407e09a0a2&h=230&w=230

For easy transport. No tools required.

Oversized Heavy Duty Rotor https://www.wallensteinequipment.com/file.ashx?id=2236d022-56ea-4fb0-9b54-59407e09a0a2&h=230&w=230

Extra large chipper intake backed up by extra large rotor spinning with high momentum.



Oversized Opening

Extra large chipper intake easily receives crooked branches, reducing the amount of prior trimming required.

Positional Discharge Deflector

The discharge chute is equipped with a positional discharge deflector on the end of the chute to direct the chips exactly where desired.

Positive Ledger Adjustment

Threaded eyebolts allow positive fine positioning of ledger plate.

Reversible Chipping Blades https://www.wallensteinequipment.com/file.ashx?id=2236d022-56ea-4fb0-9b54-59407e09a0a2&h=230&w=230

Standard reversible rotor knives double the longevity of your knives.

Self Feeding Hopper https://www.wallensteinequipment.com/file.ashx?id=2236d022-56ea-4fb0-9b54-59407e09a0a2&h=230&w=230

The self-feed hopper takes advantage of gravity and an optimized knife angle to pull branches in as it chips.

Shearbolt Protected PTO Drivetrain https://www.wallensteinequipment.com/file.ashx?id=2236d022-56ea-4fb0-9b54-59407e09a0a2&h=230&w=230

Move on from a power spike by simply replacing a single shear bolt.

Twig Breaker

The discharge paddle passes around the twig breaker and helps to break the material into smaller pieces and turn it into mulch.
