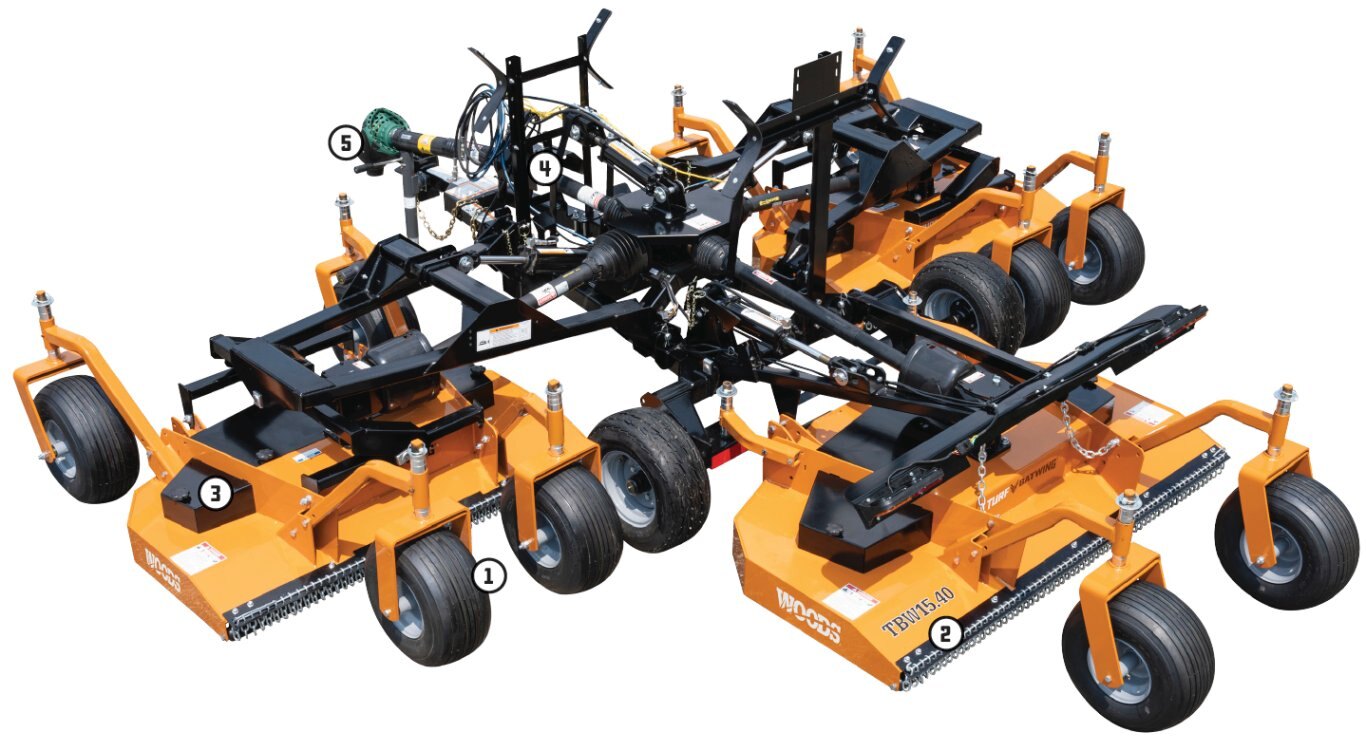

- Large Caster Wheels enable a smooth finish cut across rugged terrain.
- Wide Discharge Area for better clipping dispersal.
- Easy Shield Removal no tools needed to access belt sheaves, belt, and spring-loaded idler.
- Hydraulic Cylinders fold the mower for easy transport and storage.
- PTO Lock Collar holds PTO collar back for easier tractor connection on professional models
ID # 38889840

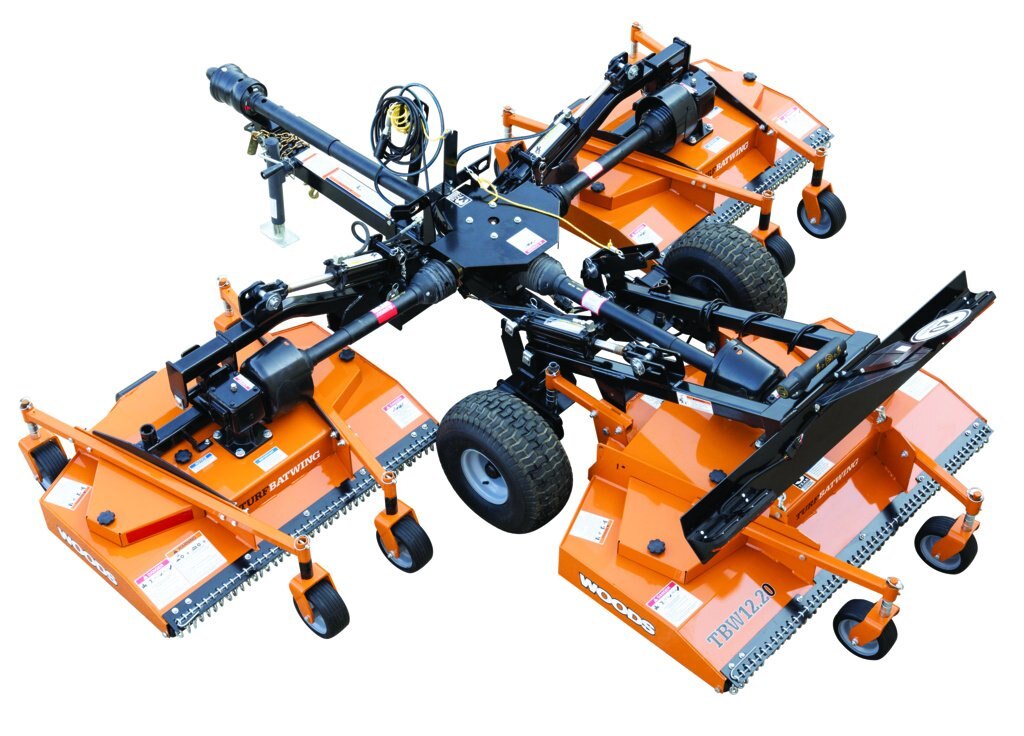

Massey Ferguson TBW12.20 Turf Batwing® Mowers
Call for Price
Overview
Specifications
features
literature
Documents
EVEN BETTER CUT QUALITYThe Woods® Turf Batwing® flex-wing finish mower features the #1 rated, best-in-class cutting technology of the TurfKeeper® series. Ideal for large property owners, commercial land managers, and landscapers who need to deliver a superior, finish-cut quality all year-round. |
#1 In Cut QualityEvery Turf Batwing® features the best-in-class cutting technology of the TurfKeeper® Series verified by independent testing. |
Faster Finish ResultsHigh blade tip speeds and a high-torque belt design let you mow faster while maintaining superior cut quality. |
Unmatched Gearbox PROTECTION6-year warranty including parts, labor, and seals. |
Model
TBW12.20
Category Name
Implements
Year
2025
Sale Type
New
Manufacturer
Massey Ferguson
Hitch
CAT 1 Drawbar
Woods C®
Compact/Subcompact
Belt Cover
Clutching cover
Drivelines
Main CAT 3 (CV) / Wing CAT 3
Product Tier
Standard
Light Kit
Optional
Belt Adjustment
Spring-loaded idler
Transport Tires
Non-highway speed-rated
Cutting Width (in)
144
Deck Overlap (in)
6
Belt Construction
B-section, Kevlar®
Gearbox Rating (HP)
100 splitter / 30 deck
Anti-Scalp Rollers
(1) Front and (2) Rear Optional
Caster Wheels (in)
(10) 8 x 3.5 solid
Blade Tip Speed (fpm)
17,900/18,200
Cutting Height (in)
1.5 – 5.0
Rear Chain Shielding
Optional
Blade Spindle Bearings
Double ball bearings
Cut Height Adjustment
Caster spacers
Hydraulic Wing Unlock
Optional
Deck Cut Widths (in)
Wing Deck 48 / Center Deck 60
Tractor PTO 540 Rpm (HP)
25-60
Warranty Spindle/Gearbox
1 year / 6 years
Features
Additional Features |
Literature
| Name | Link |
| Brochure | Download |
Woods_TurfBatwing Estate Flyer_B102101.pdf Model
