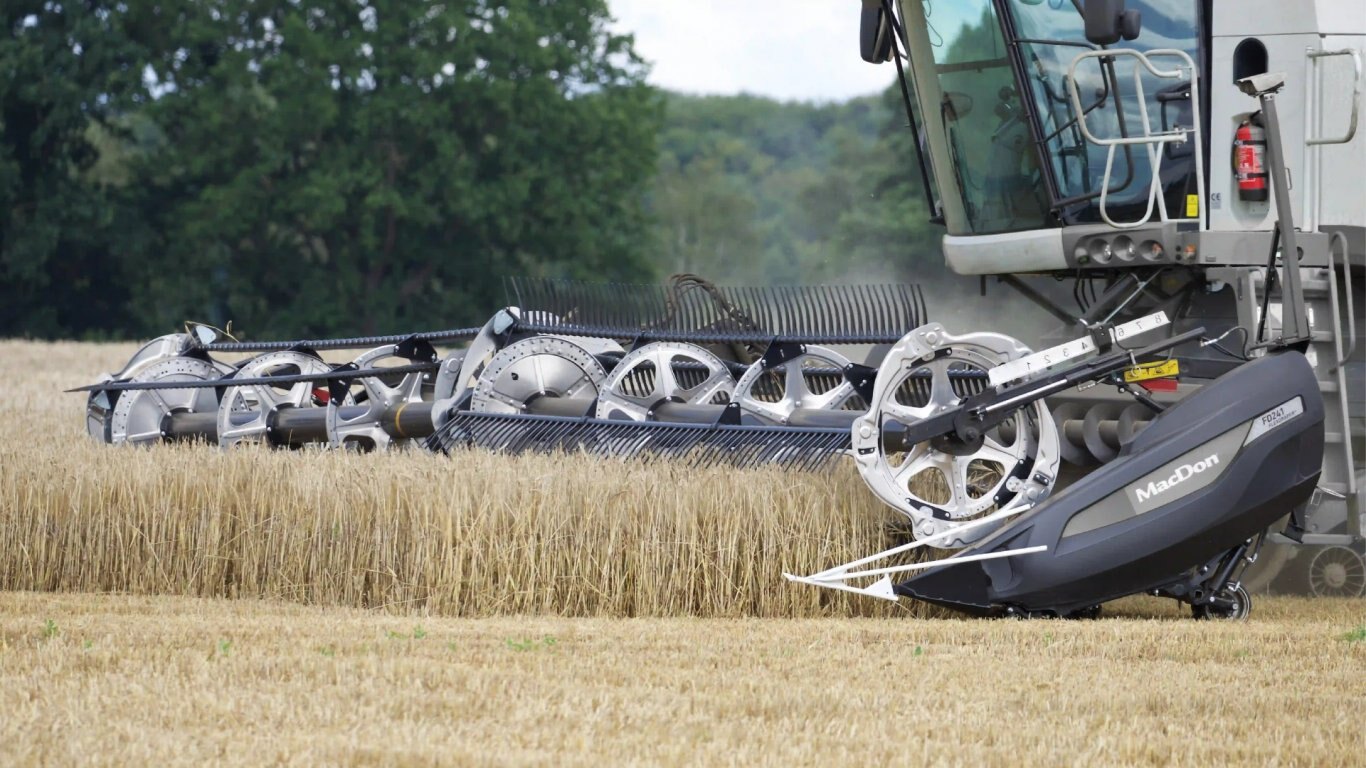

MacDon FD2 Series FlexDraper®

Call for Price

Bigger. Faster. Flexier.

More Capacity. More Speed. More Flex. The all-new FD2 gives you more of everything you need for harvesting performance from the company that brought you the Original FlexDraper®.

FD2 Series FlexDraper®
Sale Type

A Ground Following Dream.

MacDon's legendary ground-following ability continues with the FD2. MacDon's Active Float System gets coupled with up to 70%* more flex for a harvesting experience like never before. Flex-Float Technology® gets turned up with MacDon's optional ContourMax™ Contour Wheels. These wheels allow the header to follow the field's contours, leaving a consistent stubble height while cutting from 1 to 18 inches+ off the ground.

+2.5 cm (1”) / 45.7 cm (18”)

*Compared to previous model.

Cut Cleaner. Cut Faster. Cut More.

MacDon's ClearCut™ High-Speed Cutting System delivers just that; clean cutting at up to 30% faster speeds*. Helping you get there is MacDon's improved knife drive with more power and new knife section geometry with 25% more cutting surface. A smooth close shave comes from two unique ClearCut Knife Guards; choose between Pointed Knife Guards or PlugFree™ Knife Guards that resist plugging even in the nastiest conditions.

High Volume Heads-First Feeding.

The FD2's all-new frame features an ultra-deep deck with 50 inch deep drapers and is now available in 30 to 50 foot configurations. The FD2 delivers up to 20%* more capacity of smooth heads-first feeding in the tallest bushiest crops it can get its reel fingers on. No matter what type of combine you mount it to, the FeedMax™ Crop Feeding System optimizes performance. Along with active crop flow, patented reel movement, and new ShatterGuard reel positioning, the FD2 is ready for action+.

+127 cm (50”), 9.1 m (30’) to 15.2 m (50’)

*Compared to previous model.

Purposefully Designed to Make Harvest Easy.

We all know harvest time is go time, and with the FD2, you won't waste time messing around. The FD2 lets you get the job done without the struggle: easy set-up, easy operation, easy upgrades. From the quick set-up of the EasyMove™ Transport to seamless combine integration, the FD2 is always ready for action!

Get Ready for More.

The FD2 FlexDraper® is the evolution of the ground following innovation MacDon first brought to market almost 20 years ago. Like we did then, we listen to and work with you, the farmer, in the most challenging real-world conditions. What does that mean for you? More. More sizes, more durability, more harvesting innovations. So, in case you're not convinced yet, here are a few more reasons why the FD2 is the right investment for your operation!

fd2 flexdraper® specifications
Size* 9.1 m (30') 10.6 m (35') 12.2 m (40') 12.5 m (41') 13.7 m (45') 15.2 m (50')
Weight** Single Knife Drive 3701 kg (8160 lb) 2900 kg (8600 lb) 4050 kg (8928 lb) - - -
Weight** Double Knife Drive - 3985 kg (8786 lb) 4133 kg (9113 lb) 4328 kg (9542 lb) - -
Weight ** Double Knife Drive with Triple Reel - - 4283 kg (9442 lb) - 4635 kg (10218 lb) 4853 kg (10699 lb)
Knife: Type / Drive / Speed/Guards Single or Double knife / Hydraulic, MacDon design enclosed oil bath knife drive box(es) / 1200-1400/1500 spm, varies depending on header size / ClearCut™ Pointed Guards - Forged and Double Heat Treated (DHT) with Forged, Single Bolt Adjustment Hold-Down; ClearCut™ PlugFree™ Short Guards - Forged and Double Heat Treated (DHT) with Forged, Dual Bolt Adjustment Hold-Down
Reel: Type / Drive / Speed / Fingers Pick-up reel, five bats, two-piece (double) or three-piece (triple), flip-over design, cam-leading finger control / Hydraulic / 0 to 67 rpm (varies depending on combine model) / 279 mm (11") length, wear-resistant HD plastic, 102 mm (4") spacing
Conveyor: Type / Drive / Speed 1270 mm (50") deep, reversible, rubber skim-coated drapers, double V-guide with tracking, integral seal on leading edge / 0 to 209 m/min (0 to 687 ft/min)
Standard Features Fits most current model combines, hydraulic fore-aft reel positioner, hydraulic header tilt, in-cab side draper speed control, cutterbar poly wear plates, auto-header height with header angle and ground pressure indicators
Field-Installed Options EasyMove™ Transport System, ContourMax Contour Wheels, Upper Cross Auger, VetiBlade Vertical Knife, stabilizer wheels, lateral tilt automatic header height control
*Product size availability varies by market. **All listed weights are approximations and will vary depending on options installed. Check with your dealer for combine ratings. Weight includes FM200 Float Module. The FM200 Float Module weighs approximately 1029kg (2270 lb); this number varies by combine model
fm200 float module specifications
  Center Draper Feed Auger
Weight Approximately 1029 kg (2270 lb), varies by combine configuration Feed Auger Feed
Size 2000 mm (78.7") width 1630 mm (64.1") width
Type Hydraulic drive (reversible), self tracking rubber coated polyester fabric feed draper with rubber slats Mechanical drive (reversible), removable retracting fingers with bolt on flighting
Speed 107-122 m/min (350-400 ft/min), varies with combine brand 191 - 195 rpm, varies with combine brand
Header Floatation: Type/Vertical Range/Lateral Range (Tilt) 2 pairs of coil springs, independent adjustment, transport lock-out / 178 mm (7") / 4.8 degrees
fd2 flex range
  Standard (Factory) Range Increased Range**
FD230 165 mm [6.5"] up & 130 mm [5"] down 165 mm [6.5"] up & 165 mm [6.5"] down
FD235 205 mm [8"] up & 130 mm [5"] down 205 mm [8"] up & 205 mm [8"] down
FD240 Double Reel 205 mm [8"] up & 130 mm [5"] down 205 mm [8"] up & 205 mm [8"] down
FD241 205 mm [8"] up & 130 mm [5"] down 205 mm [8"] up & 205 mm [8"] down
FD240 Triple Reel 205 mm [8"] up & 205 mm [8"] down
FD245 216 mm [8.5"] up & 216 mm [8.5"] down
FD250 216 mm [8.5"] up & 216 mm [8.5"] down
** The flex range can be increased by removing the flex limiter, however a greater reel to cutter bar clearance is required. This is a customer configuration; instructions in Op Manual
